Hot dipped galvanized 200g 2.0 2.5mm 1m 1.2m 1.5m 50m 100m Hinge Joint Field Fence

Hinge Joint Field Fence ha innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time.
Even the cut pieces will not deform under pressure. It has excellent corrosion resistance and anti-oxidizing property.
Material: Hot dipped galvanized iron wire, High Tensile steel wire, galfan steel wire.
Structure: Hinged joint knot.

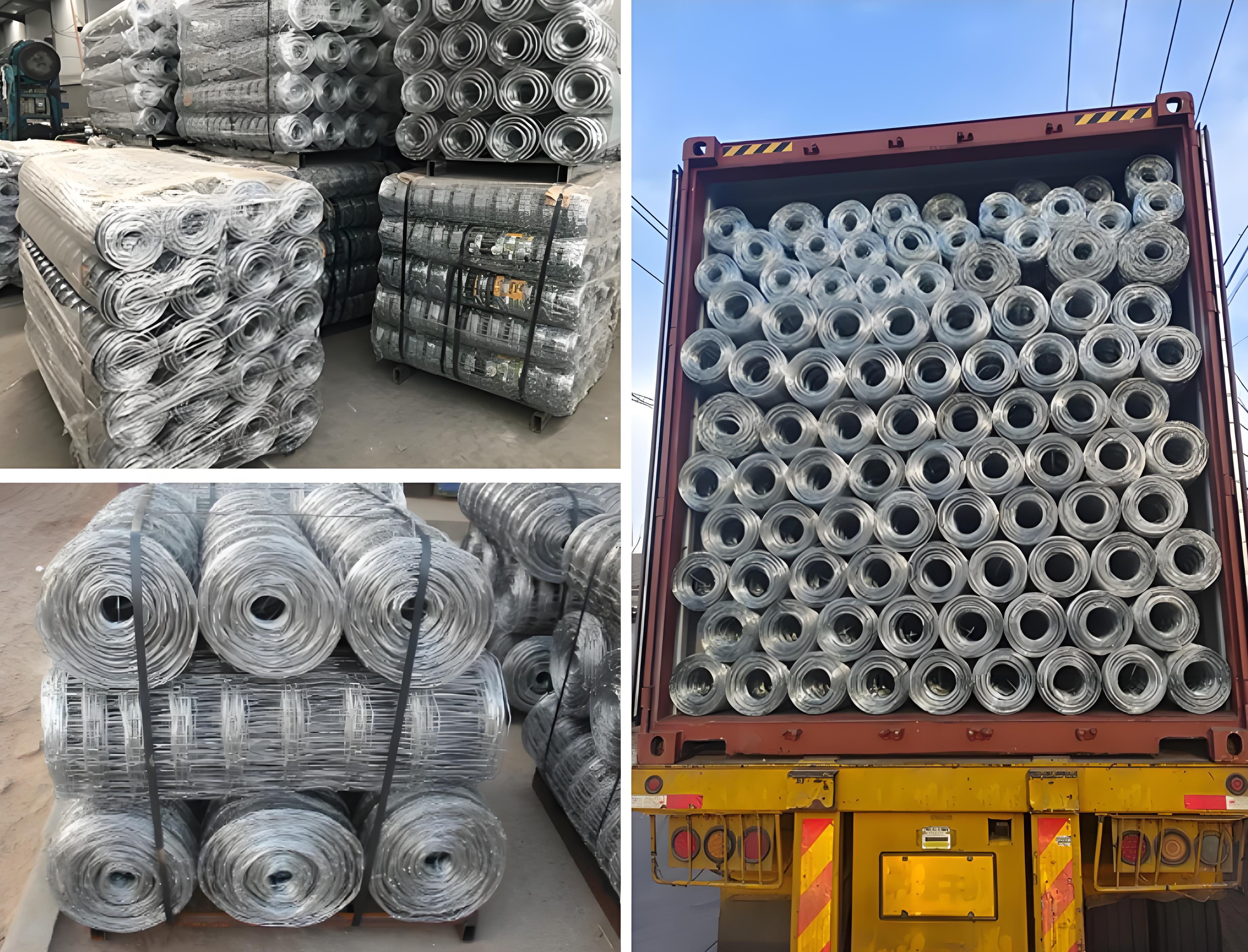

Roll sized: Supplied in 50m and 100m length.
Wire diameter:2~5mm.
Height: 0.5m ~ 2.5m.
Feature: Simple in structure; easy maintenance; short installation period; less weight; easy for transport; good ventilation

Perforated Metal Sheet

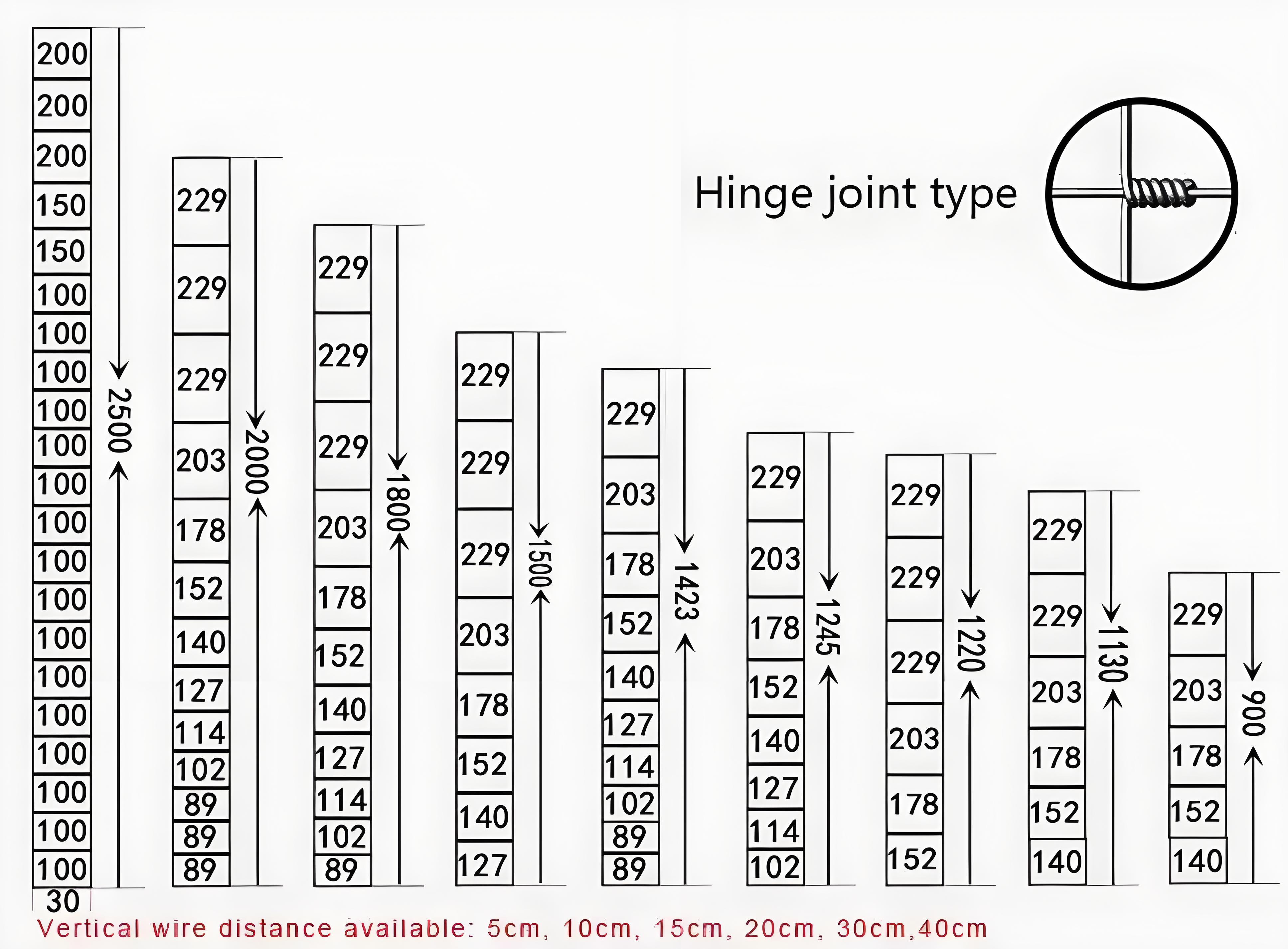

Type	Specification	Weight(kgs)	Top and Bottom Wire Dia. (mm)	inner wire Dia.(mm)
7/150/813/50	102+114+127+140+152+178	19.3	2.5mm	2mm
8/150/813/50	89(75)+89+102+114+127+140+152	20.8	2.5mm	2mm
8/150/902/50	89+102+114+127+140+152+178	21.6	2.5mm	2mm
8/150/1016/50	102+114+127+140+152+178+203	22.6	2.5mm	2mm
8/150/1143/50	114+127+140+152+178+203+229	23.6	2.5mm	2mm
9/150/991/50	89(75)+89+102+114+127+140+152+178	23.9	2.5mm	2mm
9/150/1245/50	102+114+127+140+152+178+203+229	26	2.5mm	2mm
10/150/1194/50	89(75)+89+102+114+127+140+152+178+203	27.3	2.5mm	2mm
10/150/1334/50	89+102+114+127+140+152+178+203+229	28.4	2.5mm	2mm
11/150/1422/50	89(75)+89+102+114+127+140+152+178+203+229	30.8	2.5mm	2mm
*Note: The fence can be customized according to your required if above specification is not satisfied with you.*
