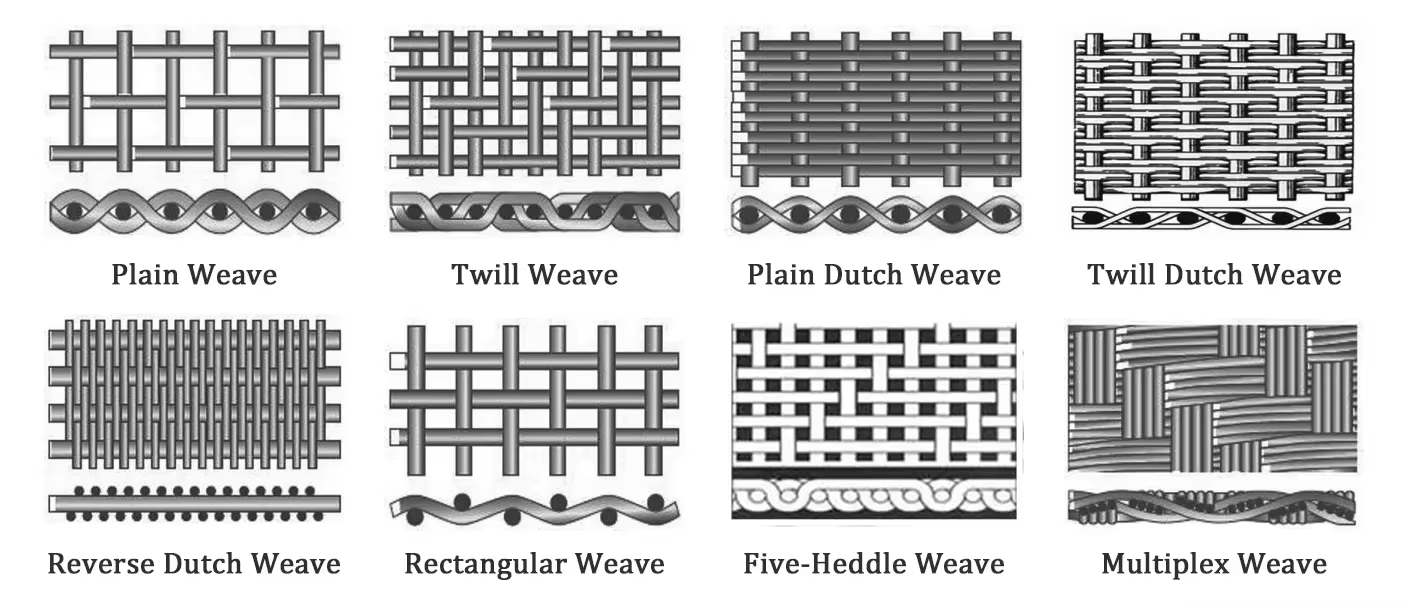

1. Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft
thread goes under the warp threads that its neighbor went over, and vice versa.

2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

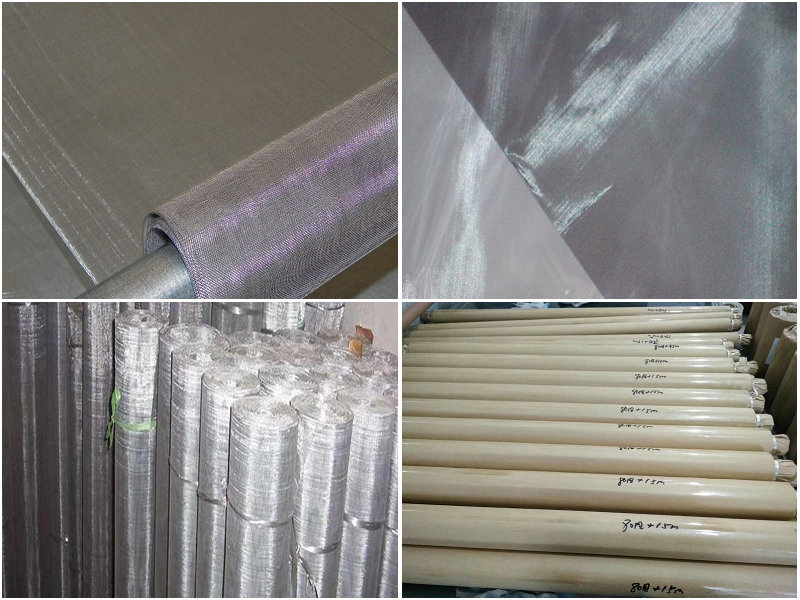

Stainless Steel Wire Mesh-Plain Weave

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth
Meshes Per Linear Inch	Diameter of Wire		Width of Opening		Open Area, %
Meshes Per Linear Inch	Inches	mm	Inches	mm	Open Area, %
1	0.135	3.5	0.865	21.97	74.8
1	0.120	3.0	0.880	22.35	77.4
1	0.105	2.5	0.895	22.73	80.1
1	0.080	2.0	0.920	23.36	84.6
3/4"	0.120	3.0	0.630	16.00	70.5
3/4"	0.080	2.0	0.670	17.01	79.8
2 x 2	0.120	3.0	0.380	9.65	57.8
2 x 2	0.105	2.5	0.395	10.03	62.4
2 x 2	0.080	2.0	0.420	10.66	70.6
2 x 2	0.063	1.6	0.437	11.10	76.4
2 x 2	0.047	1.2	0.453	11.50	82.1
3 x 3	0.080	2.0	0.253	6.42	57.6
3 x 3	0.063	1.6	0.270	6.85	65.6
3 x 3	0.047	1.2	0.286	7.26	73.6
4 x 4	0.080	2.0	0.170	4.31	46.2
4 x 4	0.063	1.6	0.187	4.75	56.0
4 x 4	0.047	1.2	0.203	5.15	65.9
5 x 5	0.047	1.2	0.153	3.88	58.5
5 x 5	0.041	1.0	0.159	4.01	63.2
6 x 6	0.063	1.6	0.104	2.64	38.9
6 x 6	0.047	1.2	0.120	3.04	51.8
6 x 6	0.035	0.9	0.132	3.35	62.7
8 x 8	0.063	1.6	0.062	1.57	24.6
8 x 8	0.047	1.2	0.078	1.98	38.9
8 x 8	0.035	0.9	0.090	2.28	51.8
8 x 8	0.032	0.8	0.093	2.36	55.4
8 x 8	0.028	0.7	0.097	2.46	60.2
10 x 10	0.047	1.2	0.053	1.34	28.1
10 x 10	0.035	0.9	0.065	1.65	42.3
10 x 10	0.032	0.8	0.068	1.27	46.2
10 x 10	0.025	0.63	0.075	1.90	56.3
12 x 12	0.041	1.0	0.042	1.06	25.4
12 x 12	0.035	0.9	0.048	1.22	33.2
12 x 12	0.032	0.8	0.051	1.29	37.5
12 x 12	0.028	0.7	0.055	1.39	43.6
12 x 12	0.023	0.58	0.060	1.52	51.8
14 x 14	0.032	0.8	0.039	1.52	29.8
14 x 14	0.025	0.63	0.046	0.99	41.5
14 x 14	0.023	0.58	0.048	1.22	45.2
14 x 14	0.020	0.5	0.051	1.30	51.0
16 x 16	0.028	0.7	0.035	0.89	30.5
16 x 16	0.023	0.58	0.040	1.01	39.9
16 x 16	0.018	0.45	0.045	1.14	50.7
18 x 18	0.020	0.5	0.036	0.91	41.1
18 x 18	0.018	0.45	0.038	0.96	48.3
20 x 20	0.023	0.58	0.027	0.68	29.2
20 x 20	0.020	0.5	0.030	0.76	36.0
20 x 20	0.018	0.45	0.032	0.81	41.0
20 x 20	0.016	0.40	0.034	0.86	46.2
24 x 24	0.014	0.35	0.028	0.71	44.2
28 x 28	0.010	0.25	0.026	0.66	51.8
30 x 30	0.013	0.33	0.020	0.50	37.1
30 x 30	0.012	0.30	0.021	0.53	40.8
35 x 35	0.012	0.30	0.017'	0.43	33.8
35 x 35	0.010	0.25	0.019	0.48	42.4
40 x 40	0.014	0.35	0.011	0.28	19.3
40 x 40	0.012	0.30	0.013	0.33	27.4
40 x 40	0.010	0.25	0.015	0.38	36.0
40 x 40	0.0095	0.24	0.016	0.40	38.4
50 x 50	0.009	0.23	0.011	0.28	30.3
60 x 60	0.0075	0.19	0.009	0.22	30.5
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0070	0.18	0.006	0.15	19.4
80 x 80	0.0055	0.14	0.007	0.17	31.4
90 x 90	0.0055	0.14	0.006	0.15	25.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0040	0.10	0.0043	0.11	26.6
120 x 120	0.0037	0.09	0.005	0.12	30.7
150 x 150	0.0026	0.066	0.0041	0.10	37.4
165 x 165	0.0019	0.048	0.0041	0.10	44.0
180 x 180	0.0023	0.058	0.0032	0.08	33.5
180 x 180	0.0020	0.050	0.0035	0.09	41.1
200 x 200	0.0020	0.050	0.003	0.076	36.0
200 x 200	0.0016	0.040	0.0035	0.089	46.0
220 x 220	0.0019	0.048	0.0026	0.066	33.0
230 x 230	0.0014	0.035	0.0028	0.071	46.0
250 x 250	0.0016	0.040	0.0024	0.061	36.0
270 x 270	0.0014	0.040	0.0022	0.055	38.0
300 x 300	0.0012	0.030	0.0021	0.053	40.1
325 x 325	0.0014	0.040	0.0017	0.043	30.0
325 x 325	0.0011	0.028	0.0020	0.050	42.0
400 x 400	0.0010	0.025	0.0015	0.038	36.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5

Stainless Steel Wire Mesh-Dutch Weave

Perforated Metal Sheet

Vibrating Screen Mesh

T/Y Post

Mesh	Wire Diameter (mm)	Material(Alsl)
12*64	0.058*0.04	304 or 316
24*110	0.36*0.25	304 or 316
14*88	0.5*0.33	304 or 316
30*150	0.23*0.18	304 or 316
40*200	0.18*0.13	304 or 316
50*250	0.14*0.11	304 or 316
80*700	0.1*0.08	304 or 316
165*800	0.071*0.04	304 or 316
165*1400	0.06*0.04	304 or 316
200*1800	0.05*0.032	304 or 316
325*2300	0.035*0.025	304 or 316
400*2800	0.03*0.02	304 or 316
