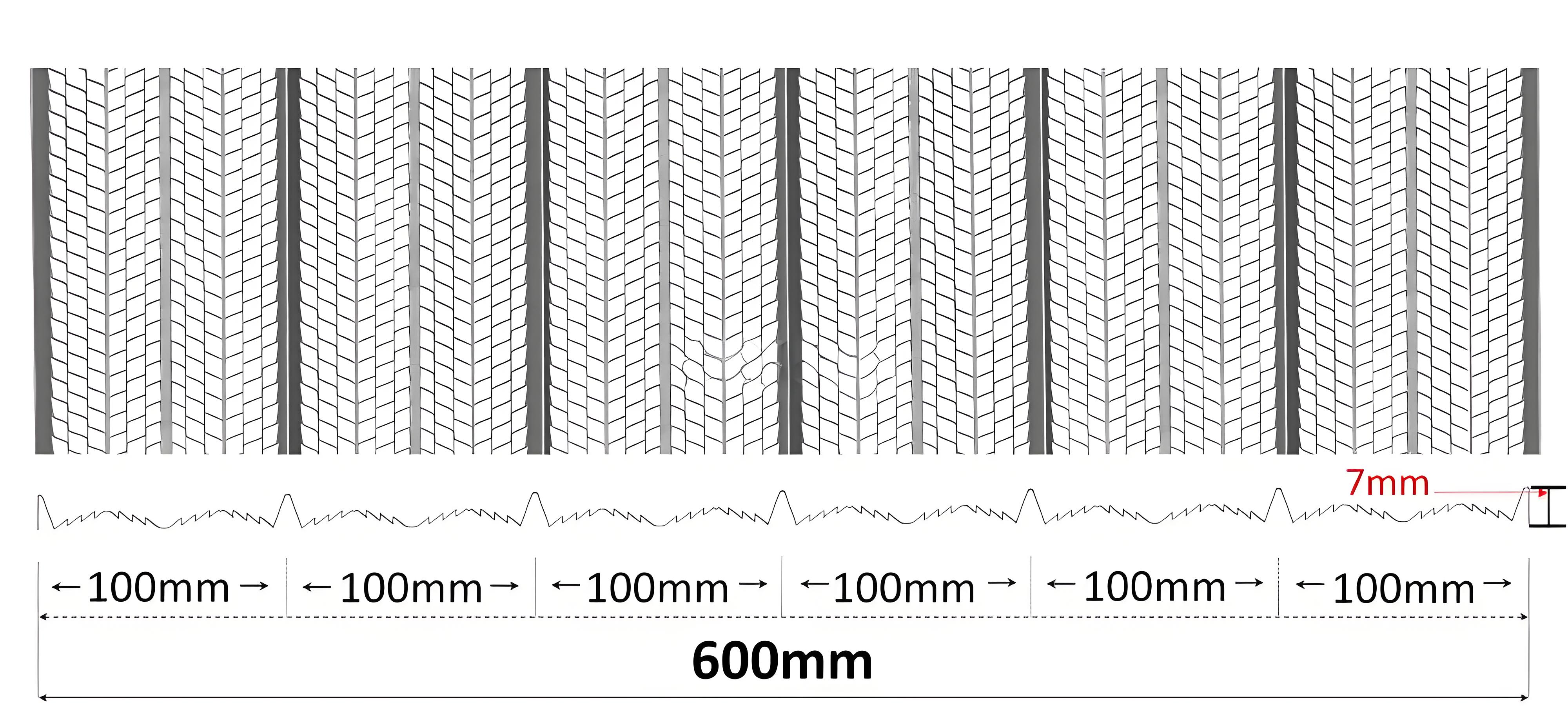

610 x 2440mm 0.35mm 0.35mm 7 Rib 8 Opening plate thickness flat Metal Rib Lath sheet

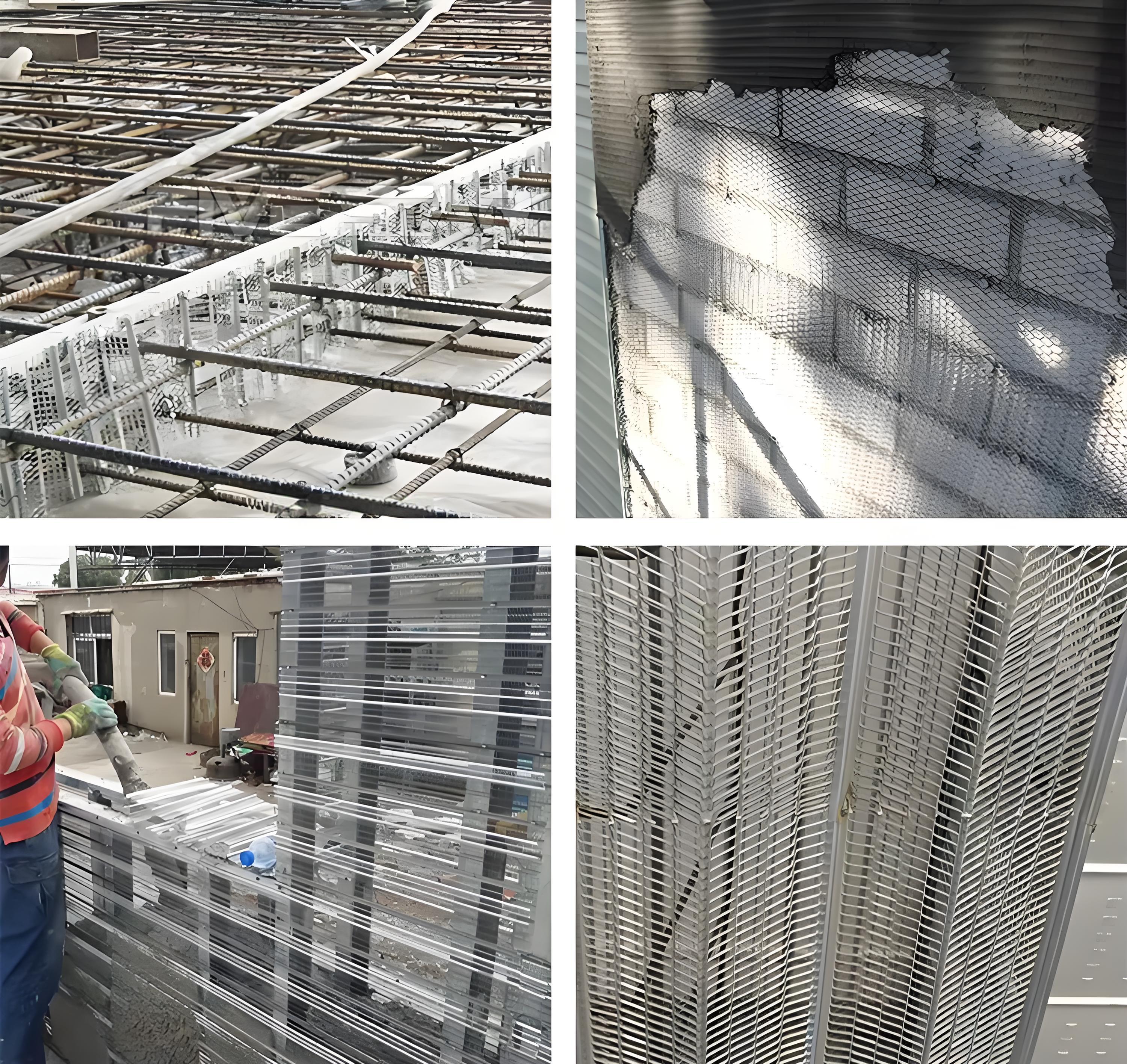

Rib lath is idea for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face. Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together. Stainless steel fixing should be used at sufficient intervals to hold the lath firmly in position.
It has been widely applied to concrete structure of projects. It has better stress strength and free shape, it is mostly used as concrete permanent dismantle free template for civil engineering such as tunnel, bridge.

Perforated Metal Sheet

Thickness(mm)	Rib Distance(mm)	Weight(KG)	Width X length (mm)
0.30	100	1.79	610 x 2440
0.35	100	2.09	610 x 2440
0.40	100	2.38	610 x 2440
0.45	100	2.68	610 x 2440
0.5	100	2.98	610 x 2440

Thickness(mm)	Rib Distance(mm)	Weight(KG)	Width X length (mm)
0.30	150	1.31	610 x 2440
0.35	150	1.53	610 x 2440
0.40	150	1.75	610 x 2440
0.45	150	1.96	610 x 2440
0.5	150	2.17	610 x 2440
