1000x6000mm Hooked Mn65 Vibrating Screen crimped wire Mesh for 6mm Sand Gravel

Vibrating Screen Mesh also called Crusher Screen Mesh, Asphalt Plant Screen, Hooked Crimped Mine Sieving Sand Mesh, Hooked Vibrating Sieve.

The manganese steel ore screen adopts an embedded (Mn65-Q) weaving method, with no protruding latitude and longitude overlapping points, a flat surface, and uniform force distribution. Its hardness is HB180-230 with good plasticity and toughness. When subjected to strong impact and friction, the surface undergoes strong work hardening due to plastic deformation, and the surface hardness value can be increased to HRC60 or above, thereby achieving high wear resistance, while maintaining high plasticity and toughness internally. When the old surface wears down, the new surface forms a wear-resistant layer, resulting in a longer lifespan. It is commonly used in large-scale coal mining industries and can also be used as a protective net for professional mechanical vibrating screening machines, drum screening machines, electromagnetic high-frequency screening machines, and asphalt mixers.

Perforated Metal Sheet

Vibrating Screen Mesh

Material Grade	Chemical Composition			Wire Diameter
	C	Si	Mn	mm
45	0.42-0.50	0.17-0.37	0.50-0.80	2.00-6.00
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
72	0.67-0.75
65Mn	0.62-0.70		0.90-1.20	2.00-14.0
Aperture width/hole size		0.75-100
Width & Length		12m, 22.5m

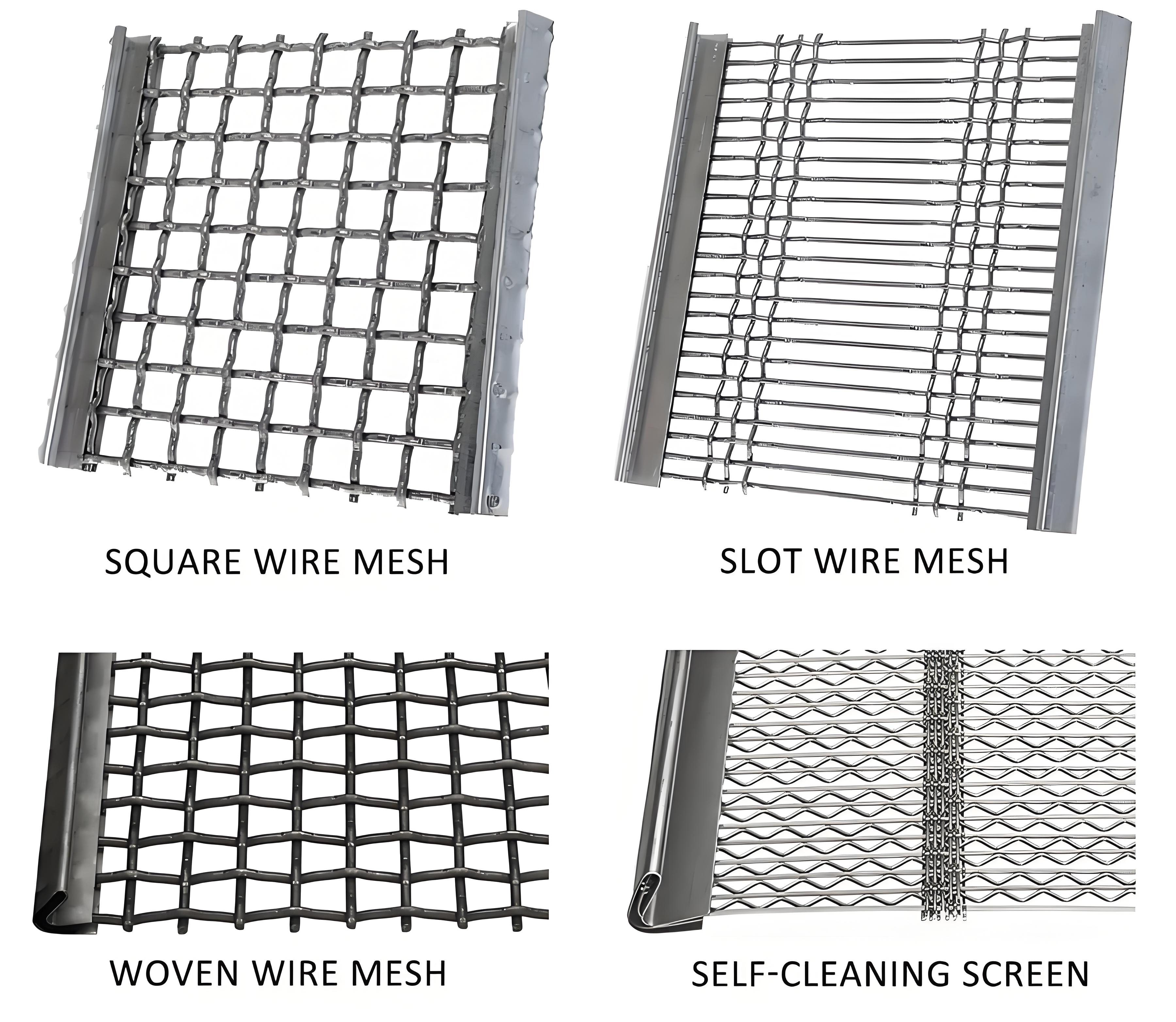

Weaving type		Double Crimp Screen, Single Intermediate Crimp Screen, Double Intermediate Crimp Screen, Lock Crimp Screen

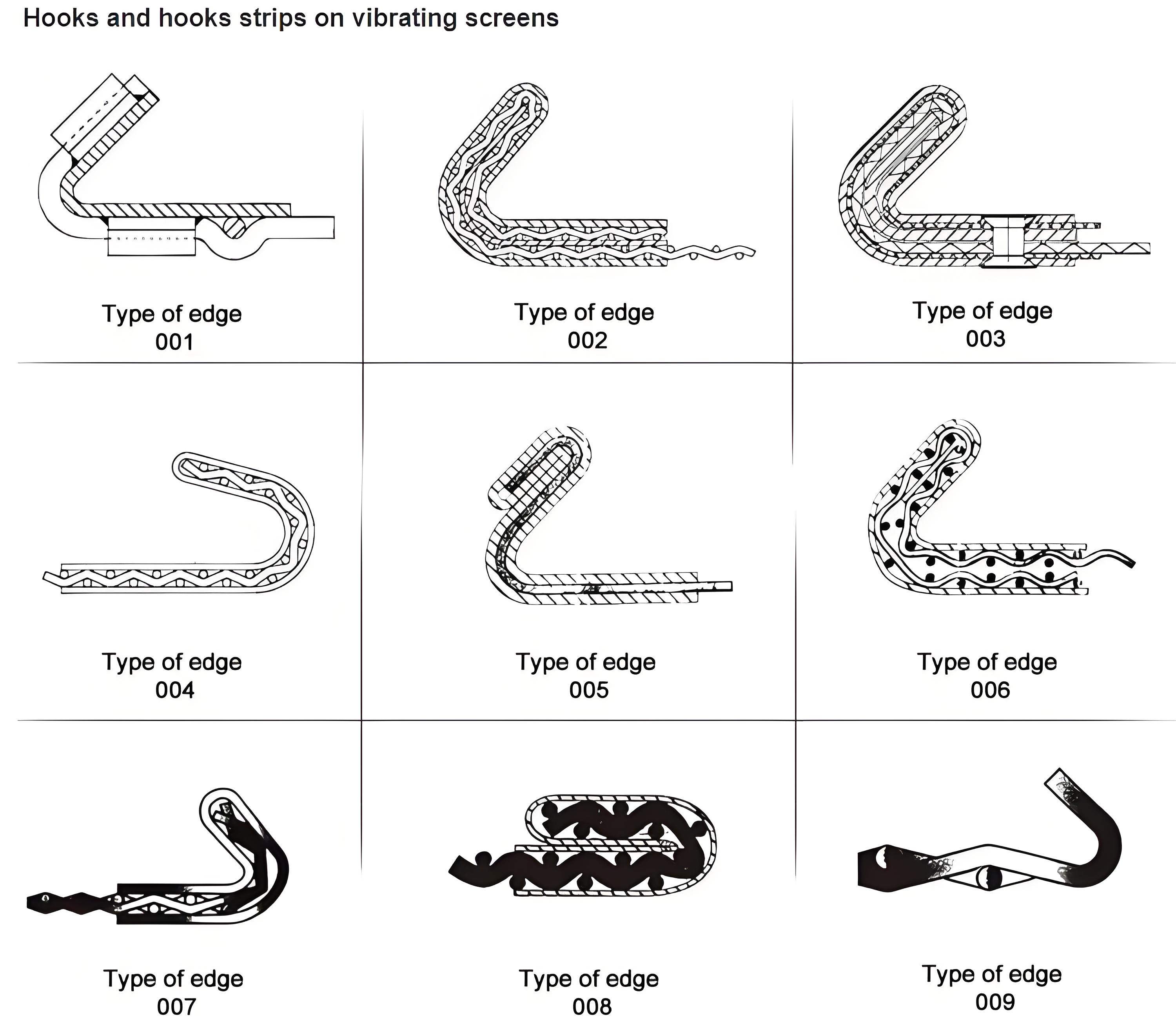

Edge type		Cut Edges, Plain Hooks, Sheathed Hooks
