Y Shape height 2.5m Security Anti Climb Welded Wire Mesh Airport Fence for Boundary Wall

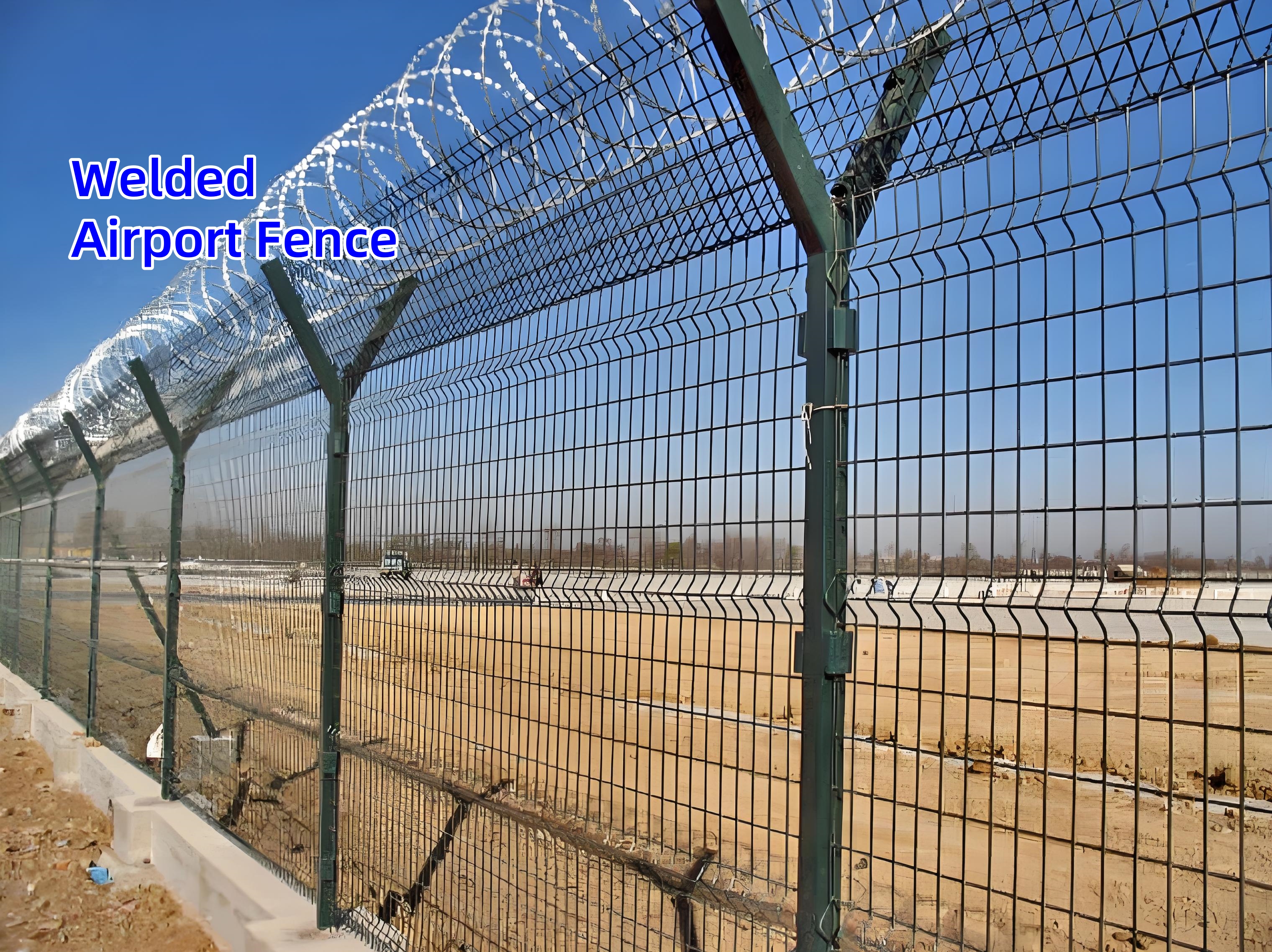

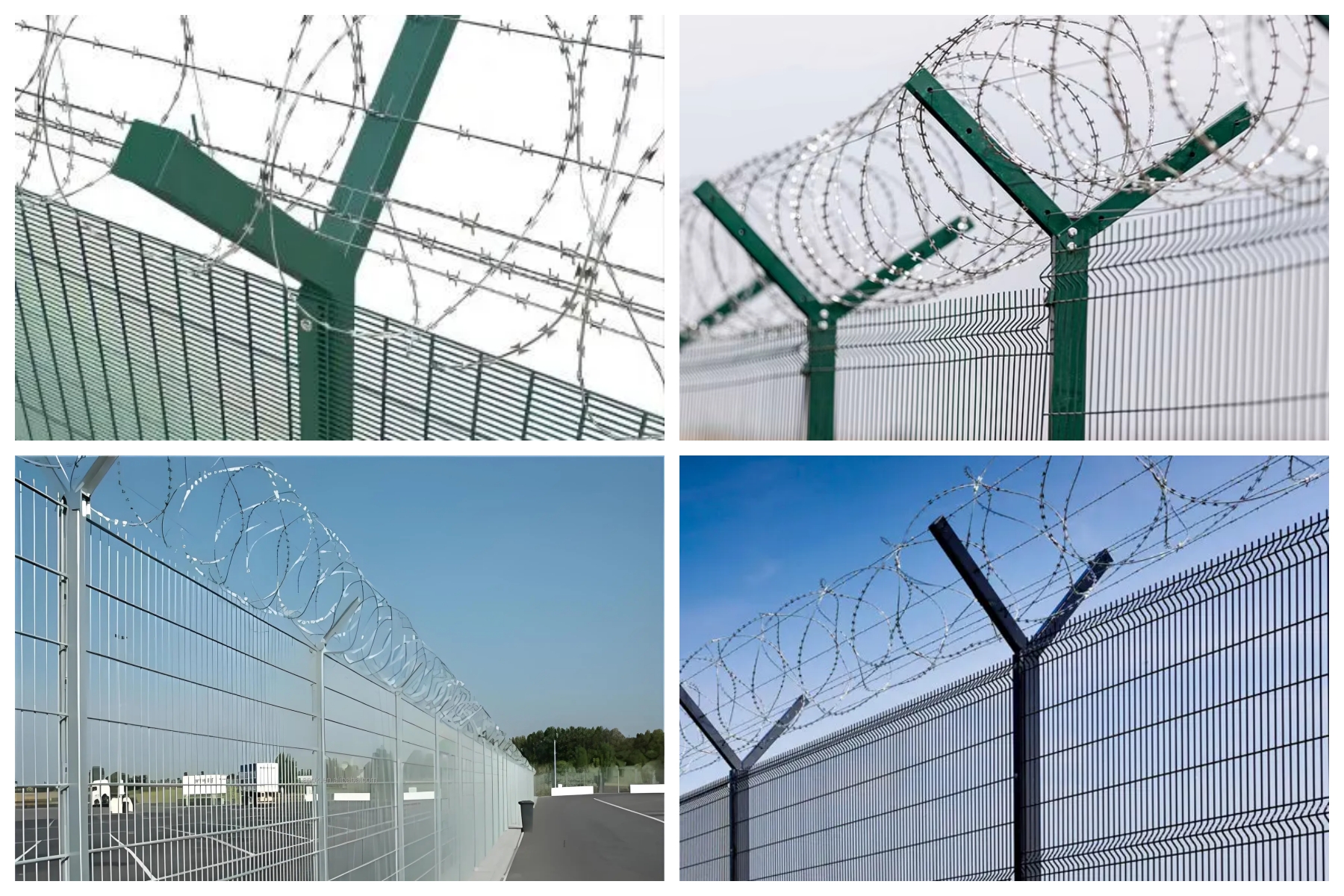

Welded Airport Fence is also known as "Y-Shape security fences", "Anti Climb Fencing 358 High Security fence" "Airport security fences". It is reinforced with V-shaped support arms and welded mesh panels or chain link fencing, safety fittings and hot-dip galvanized concertina razor mesh, resulting in a high level of strength and safety. the fence are welded with low carbon steel wires and then PVC coated or power coated. Widely used in separating and defending in airport, beautifying and climbing-resisting.

Perforated Metal Sheet

Fence panel height	2.03m, 2.23m, 2.43m, etc.
Fence panel length	2.0m, 2.5m, 3.0m, etc.
Wire diameter	3mm-5mm
Hole opening	50x150mm, 50x200mm, 55x150mm, 55x200mm
Quantity of curves	2,3,4
V-mesh panel	0.5x2m, 0.5x2.5m, 0.5x3m, etc.
Post height	1.6m, 2.0m, 2.2m, 2.5m, 2.8m, 3.0m, 4.0m
Post size	(SHS) 50x50mm, 60x60mm; (RHS) 40x60mm, 60x80mm
Post thickness	1.5mm, 2.0mm, 2.5mm
Material	Low carbon steel wire, galvanized wire ; steel pipe
Surface treatment	Galvanized, PVC coated, powder coated.

Panel Type	Height	Width	Hole opening	Wire thickness
358 Fence	1.8-2.5m	2m-3m	76.2x12.7mm	4mm
3DFence/Curvy Wire Mesh Fence	1.8-2.5m	2m-3m	50x100mm, 50x200mm	3-5mm
Chain Link Fence	1.8-2.5m	10m-30m	50x50mm, 60x60mm	3-5mm
