60*80 80*100mm 2.7mm 3.4mm 2mx1mx1m Galvanized Glfan PVC Coated Gabion Basket

Stainless Steel Wire Specification(Dutch Weave)
Mesh	Wire Diameter (mm)	Material(Alsl)
12*64	0.058*0.04	304 or 316
24*110	0.36*0.25	304 or 316
14*88	0.5*0.33	304 or 316
30*150	0.23*0.18	304 or 316
40*200	0.18*0.13	304 or 316
50*250	0.14*0.11	304 or 316
80*700	0.1*0.08	304 or 316
165*800	0.071*0.04	304 or 316
165*1400	0.06*0.04	304 or 316
200*1800	0.05*0.032	304 or 316
325*2300	0.035*0.025	304 or 316
400*2800	0.03*0.02	304 or 316

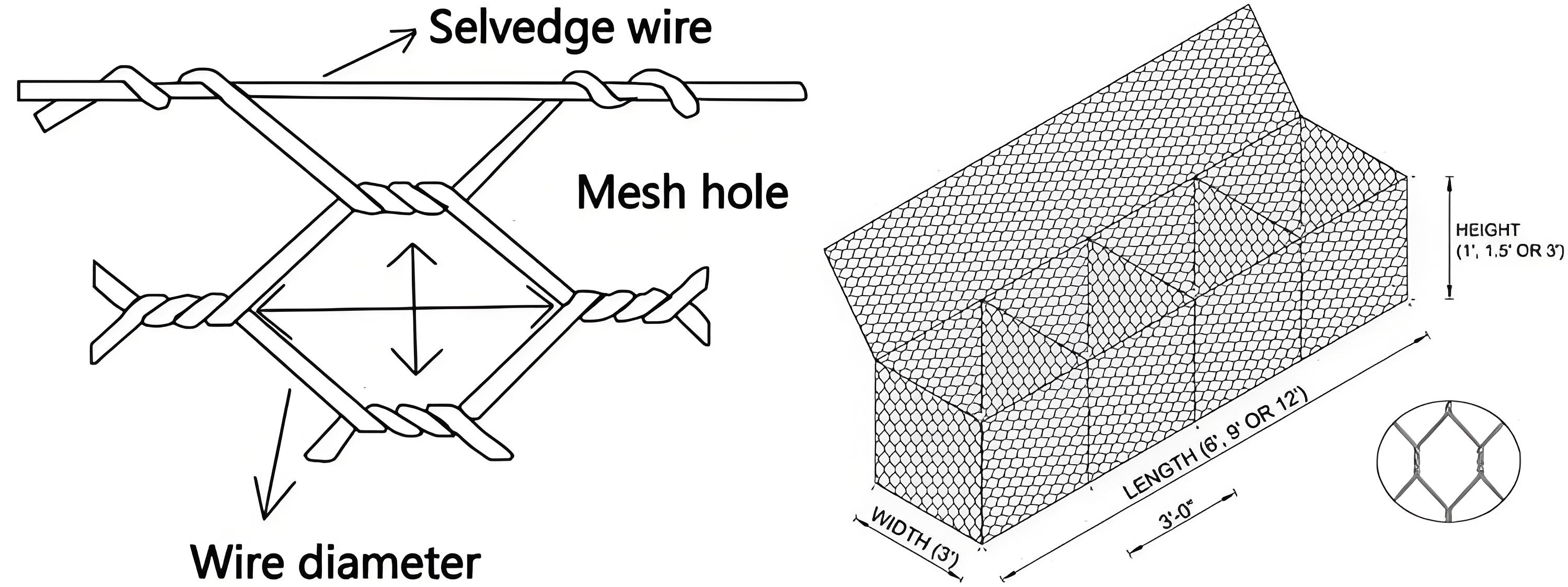

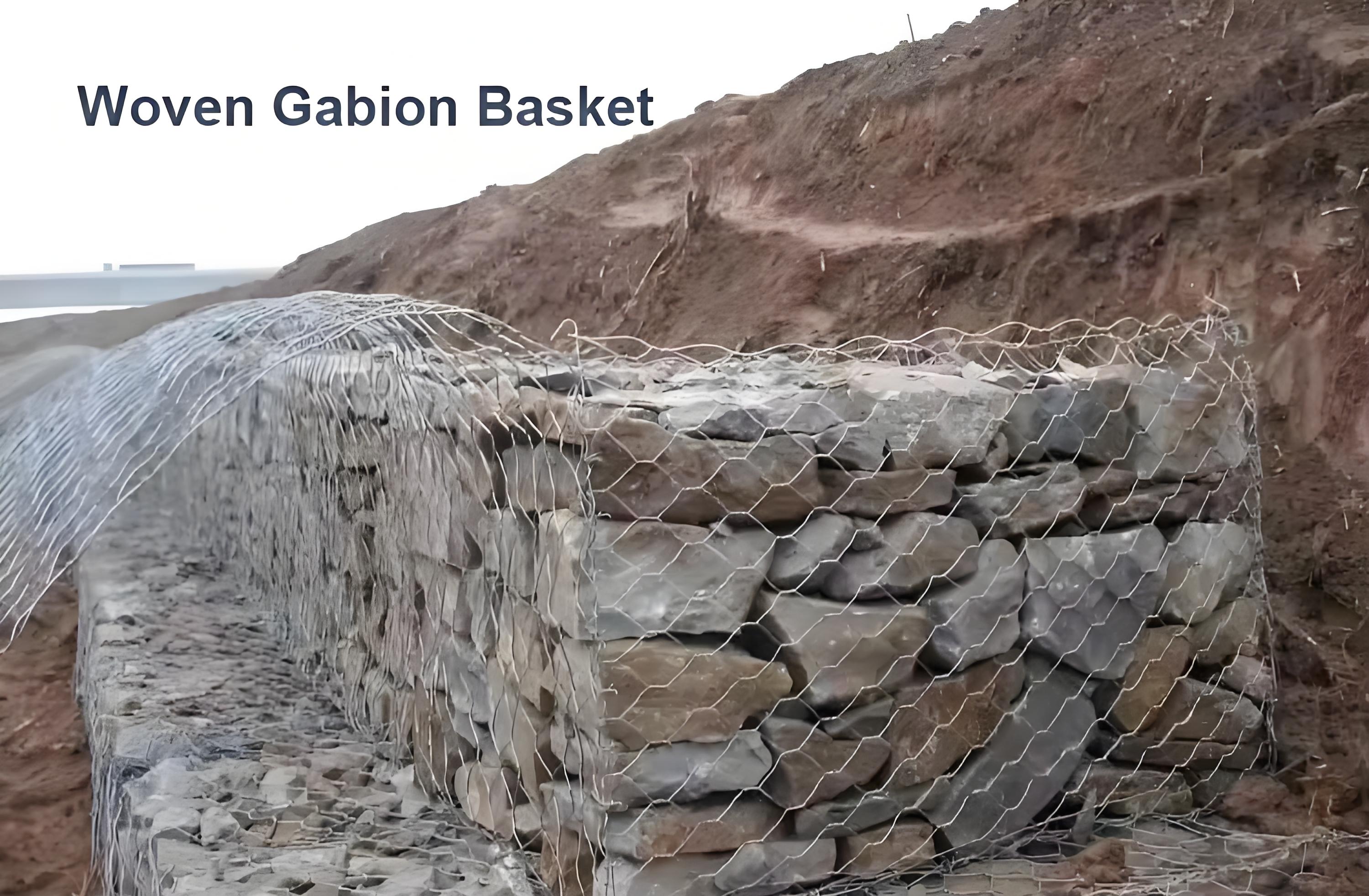

Gabion basket are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.

Gabion basket is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion baskets be divided into cells by diaphragms at every 1 meters.

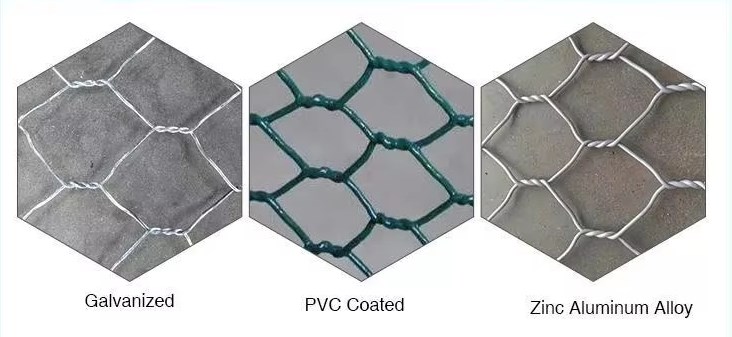

Material:hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion. PVC coated Wire, PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color.
Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
opening: 6x8cm,8x10cm,10*12cm
mesh wire: 2.2mm,2.7mm,3.0mm

Perforated Metal Sheet

Mesh Opening Size	Mesh Wire	Gabion Size
80 x 100mm 100x120mm	2.7mm, 3.05mm, 3.2mm, 2.4mm, 2.5mm (2.0-4.0mm)	2x1x1m, 2x1x0.5m, 3x1x1m, 3x1x0.5m, 3x2x0.3m, 4x1x1m, 4x1x0.5m, 4x2x0.3m, 5x1x1m, 5x1x0.5m, 5x2x0.3m, 6x2x0.3m etc.
60 x 80mm	2.2mm, 2.0mm, 2.4mm (2.0-4.0mm)	6x2x0.3m, 4x2x0.3m, 5x2x0.3m etc.
Selvedge wire	3.4mm, 3.8mm, 3.9mm, 3.0mm etc.
Lacing wire	2.2mm, 2.0mm, 2.4mm
Material	Hot dipped galvanized wire (Zinc 40-60g, 245g, 260g, 275g, 300g etc.) Galfan wire (Zinc 90% + Alu 10%, Zinc 95% + Alu 5%) PVC Coated (Hot dipped galvanized + PVC coated)
